Audio/Information Screen

Displays the audio status and wallpaper. From this display, you can go to various setup options.

Detail
Touchscreen Operation
  • Use simple gestures - including touching, swiping, and scrolling - to operate certain audio functions.
  • Some items may be grayed-out during driving to reduce the potential for distraction.
  • You can select them when the vehicle is stopped or use voice commands.
  • Wearing gloves may limit or prevent touchscreen response.

You can change the touchscreen sensitivity setting.

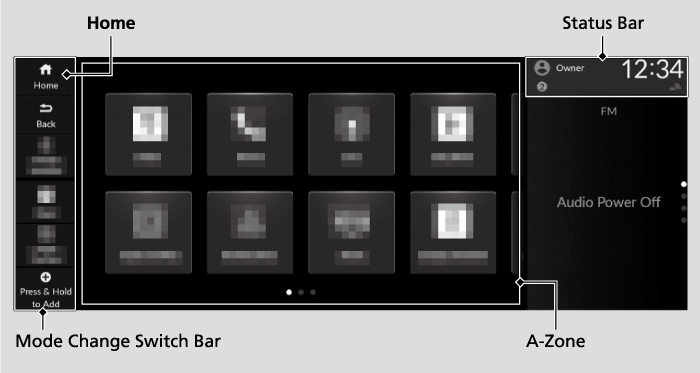

Mode Change Switch Bar
You can also select any application from the Mode Change Switch bar. Shortcuts can be edited to open other applications; but Home, Back, and Google Assistant*1 or Alexa*1 cannot be edited.

  1. These buttons also cannot be moved.To shortcut icons on the home screen

A-Zone

The A-Zone is main operation area in the 12.3" Color Touchscreen.

Switching the display

Select Home to go to the home screen.
Select the following icons on the home screen or after selecting All Apps.

Trip Computer

Displays the trip computer information.

  • Current Drive tab: Displays the current trip information.
  • Trip A/Trip B tab: Displays information for the current and three previous drives. The information is stored every time you reset Trip A/B.
    To reset the Trip A/B, select Menu, then select Delete Trip History.
    To change the setting of how to reset Trip A/B, select Menu, then select “Trip A” Reset Timing or “Trip B” Reset Timing.

Compass

Displays the compass screen.

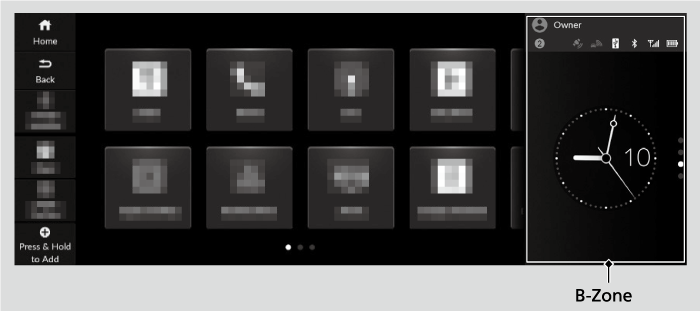

B-Zone

The B-Zone displays a card that is useful while the driver is using another application in the A-Zone.

The following cards are available:

  • Audio source
  • Clock
  • Navigation (Apple CarPlay or Android Auto)
  • Compass
  • Trip Computer
  • Suggestions from Google Assistant
Detail
You can swipe up and down on the B-Zone to view a different card.
Page position is indicated at the right of the B-Zone.

Wallpaper Setup

You can change, store, and delete the wallpaper on the audio/information screen.

Detail
The wallpaper you set up on Clock Faces cannot be displayed on the driver information interface.
  • When importing wallpaper files, the image must be in the USB flash drive’s root directory. Images in a folder cannot be imported.
  • The file name must be fewer than 64 bytes.
  • The file format of the image that can be imported is BMP (bmp) or JPEG (jpg).
  • Up to 11 pictures can be imported.
  • The maximum image size is 4,096 × 2,304 pixels. If the image size is less, the image is displayed in the middle of the screen with the extra area appearing in black.

You cannot delete the initially imported wallpapers.

Import wallpaper

  1. Connect the USB flash drive to the USB port.
  2. Select Clock.
  3. Select Menu.
  4. Select Clock Faces.
  5. Select Add More.
  6. Import a desired picture.
    • Multiple pictures can be imported at the same time.
  7. Select Select Files.
  8. Select Add Files.
    • The display will return to the Clock Faces screen.

Select wallpaper

  1. Select Clock.
  2. Select Menu.
  3. Select Clock Faces.
  4. Select a desired wallpaper.
  5. Select Save.
    • The display will return to the Clock Faces screen.

Delete wallpaper

  1. Select Clock.
  2. Select Menu.
  3. Select Clock Faces.
  4. Select Delete Files.
  5. Select Select Files to Delete.
    • When you want to delete everything wallpaper. Select Delete All Files.
  6. Select a desired wallpaper.
  7. Select Select Files.
  8. Select Delete Files.
    • The display will return to the Clock Faces screen.

Home Screen

Detail
The home screen can contain up to six pages.

Select Home to go directly back to the first page of the home screen from any page.

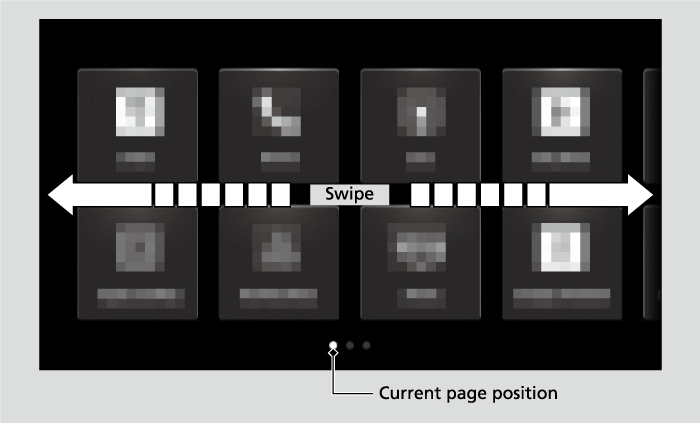

To move to the next screen

Swiping the screen left or right changes to the next screen.

To add/remove app icons on the home screen

App icons can be added or deleted on the home screen.

  1. Select Home.
  2. Select All Apps.
  3. Select an app to check or uncheck it.
Detail
Apps will not be deleted by deleting the icon on the home screen.

To move/remove icons on the home screen

You can change icon locations on the home screen.

  1. Select and hold an icon.
    • The screen switches to the customization screen.
  2. Drag and drop the icon to where you want it to be.

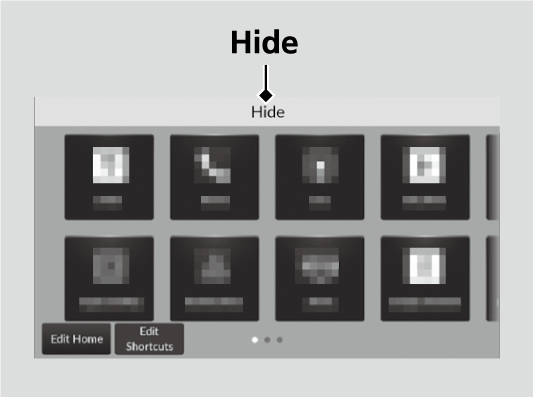

    • Drag and drop the icon to Hide to remove from the home screen.
  3. Select Home or Back.
    • The screen will return to the home screen.
Detail
Apps will not be deleted by deleting the icon on the home screen.

Select Tips to show tips. To hide them, select it again.

To shortcut icons on the home screen

You can store up to three icons on the mode change switch bar.

  1. Select and hold an icon.
    • The screen switches to the customization screen.
  2. Select Edit Shortcuts.
  3. Drag and drop the icon you want to store to the left of the home screen.
    • The icon is stored as a shortcut.
  4. Select Home or Back.
    • The screen will return to the home screen.
Detail
Select Tips to show tips. To hide them, select it again.

You can also to shortcut icons on the home screen the following procedure.

  1. Select and hold an icon.

  2. Select Edit Shortcuts.

  3. Select an icon.

  4. Select shortcut location.

  5. Select Home or Back.

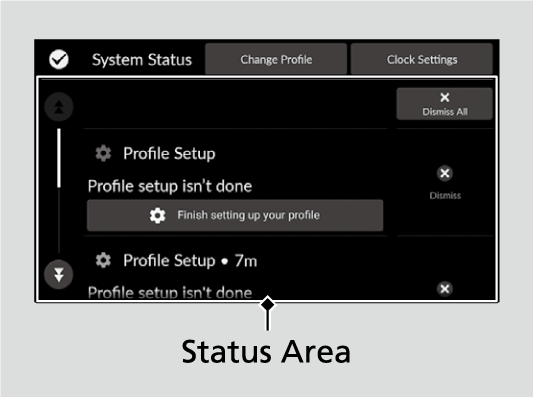

Status Bar

Shows the indicators of the information for the vehicle, connected phones, etc. in the header area. You can confirm the detail information shown in the status area by selecting the status bar.
