Customized Features

Models with 9-in. Color Touchscreen

Use the audio/information screen to customize certain features.

Detail
When you customize settings:
  • Make sure that the vehicle is at a complete stop.
  • Set the parking brake.

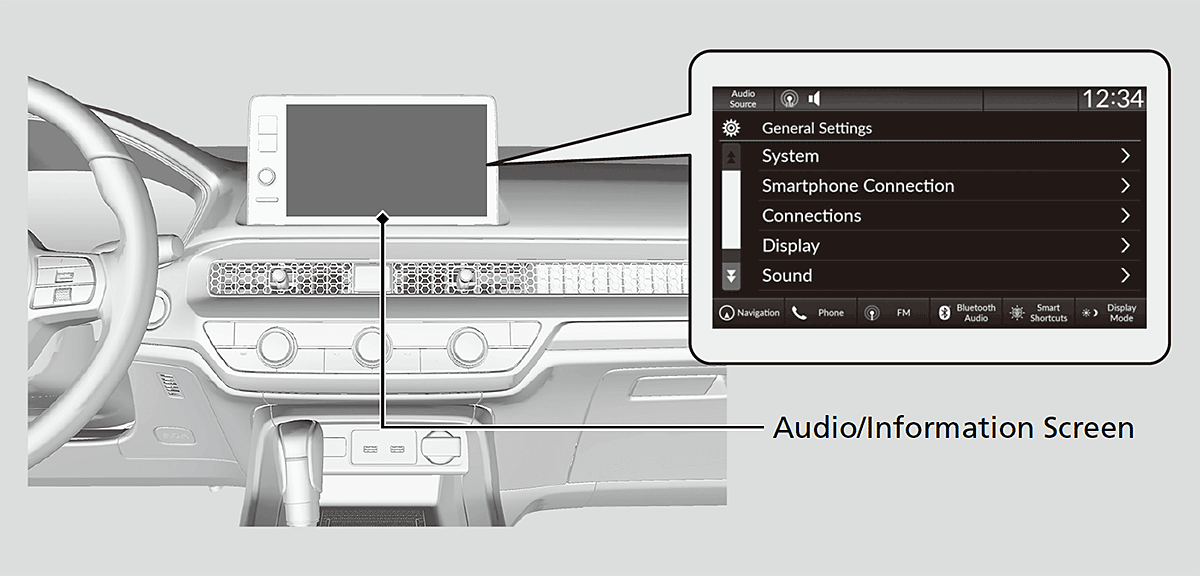

How to Customize the General Settings

With the power mode in ON, press the button, and then select General Settings and select a setting item.

System

Customizable Features
Description
Selectable Settings
Date & Time
Set Date & Time
Automatic Date & Time
Select ON to have the GPS automatically adjust the clock. Select OFF to cancel this function.
ON*1/OFF
Set Date
Adjusts date.
Day/Month/Year
Set Time
Adjusts time.
Hour/Minute
AM/PM
Time Zone
Automatic Time Zone
Sets the audio system to automatically adjust the clock when driving through different time zones.
ON*1/OFF
(Select time zone)
Changes the time zone manually.
—
Auto Daylight Saving Time
Sets the clock to update based on daylight savings time.
ON*1/OFF
Date Format
Select a date format.
MM/DD/YYYY*2/
DD/MM/YYYY*3/YYYY/MM/DD
Time Format
Select a time format.
12H*1/24H
  1. Default Setting
  2. Default Setting for U.S. models
  3. Default Setting for Canadian models
Customizable Features
Description
Selectable Settings
Language
Changes the driver information interface and audio/information screen language separately.
English*1/Español/Français
Touch Panel Sensitivity
Sets the sensitivity of the touch panel screen.
High/Normal*1
System Volumes
System Sounds
Sets the system sound volume level.
—
Text-to-Speech
Sets the text-to-speech volume level.
—
Navigation Guidance
Sets the navigation guidance volume level.
—
Phone Calls
Sets the phone call volume level.
—
Default
Resets all System Volumes settings to default values.
Data Sharing Setting
Turns the data sharing setting on and off.
ON*1/OFF
Refuel Recommend
Turns the refuel recommend function on and off.
ON*1/OFF
  1. Default Setting
Customizable Features
Description
Selectable Settings
About
Status
Displays the Android setting items.
—
Legal Information
Model Number
Android Version
Kernel Version
Build Number
Factory Data Reset
Resets all the settings to their factory default.
Continue/Cancel
Detail Information
App Manager
Displays the Android system memory and apps information.
—

Smartphone Connection

Customizable Features
Description
Selectable Settings
Apple CarPlay
+ Connect New Device
Pairs a new phone to Apple CarPlay.
—
(Saved Devices)
Connects, disconnects, or deletes a paired phone.
—
Android Auto
+ Connect New Device
Pairs a new phone to Android Auto.
—
(Saved Devices)
Connects, disconnects, or deletes a paired phone.
—

Connections

Customizable Features
Description
Selectable Settings
Wi-Fi
Change Mode
Changes the Wi-Fi mode.
Network*1/Smartphone*2/OFF
(Available Networks/Connected Devices)
Displays the available network(s) or current connected device(s).
—
Options
Add Network
Adds a new network to connect Wi-Fi.
—
Saved Networks
Saves the connected network.
—
Setup
Network SSID
Sets the network name.
—
Security
Displays the network security.
—
Password
Sets a required password to connect a Wi-Fi device to the network.
—
Wi-Fi Band
Displays the Wi-Fi band.
—
Bluetooth
Options
Bluetooth
Turns the Bluetooth® on and off.
ON*1/OFF
Priority Device
Displays the priority device.
—
+ Connect New Device
Pairs a new phone to HFL.
—
(Saved Devices)
Connects, disconnects, or deletes a paired phone.
—
  1. Default Setting
  2. Appears only when Apple CarPlay or Android Auto is connected wirelessly.

Display

Customizable Features
Description
Selectable Settings
Brightness
Changes the brightness of the audio/information screen.
—
Contrast
Changes the contrast of the audio/information screen.
—
Black Level
Changes the black level of the audio/information screen.
—
Default
Resets all customized settings for the brightness, contrast, and black level.
—

Sound

Customizable Features
Description
Selectable Settings
Bass / Treble
Treble
Adjusts the settings of the audio speakers' sound.
—
Midrange
Bass
Audio Zones & Balance / Fader
Bose Centerpoint
Bose Dynamic Speed Compensation

Camera

Customizable Features
Description
Selectable Settings
Rear Camera
Fixed Guideline
Shows the guideline that does not move with the steering wheel.
ON*1/OFF
Dynamic Guideline
Shows the guideline that moves with the steering wheel.
ON*1/OFF
Cross Traffic Monitor*
Shows arrows on the rear camera image to indicate vehicles approaching from the sides.
ON*1/OFF
  1. Default Setting

Voice Control

Customizable Features
Description
Selectable Settings
Voice Control Mode
Selects a mode of the voice portal screen.
Assist/Normal*1
  1. Default Setting

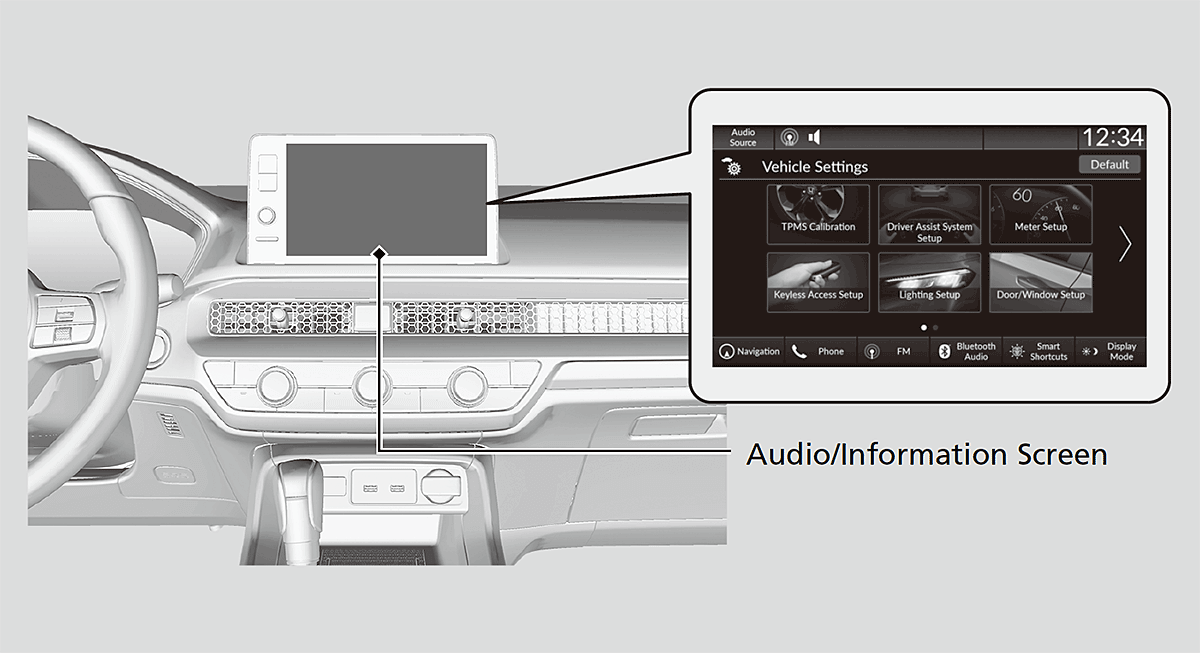

How to Customize the Vehicle Settings

With the power mode in ON, press the button, and then select Vehicle Settings and select a setting item.

TPMS Calibration*

Customizable Features
Description
Selectable Settings
TPMS Calibration
Cancels/Calibrates the tire pressure monitoring system (TPMS).
Calibrate/Cancel

Driver Assist System Setup

Customizable Features
Description
Selectable Settings
Forward Collision Warning Distance
Changes the distance at which Collision Mitigation Braking SystemTM (CMBSTM) alerts.
Long/Normal*1/Short
ACC Forward Vehicle Detect Beep
Turns On/Off audible notification when vehicle has moved in/out of adaptive cruise control with Low Speed Follow* range.
ON/OFF*1
Road Departure Mitigation Setting
Selects operating mode of the Road Departure Mitigation system.
Narrow/Normal*1/Wide/Warning Only
Lane Keeping Assist Suspend Beep
Switches the LKAS suspend alert beeps on and off.
ON/OFF*1
  1. Default Setting
Customizable Features
Description
Selectable Settings
Blind Spot Info*
Selects On/Off the blind spot information system audible alert.
Audible And Visual Alert*1/Visual Alert
Traffic Sign Recognition System Display Setting
Displays the traffic sign recognition system on the instrument panel.
Display*1/None
Traffic Sign Recognition System Speed Limit Warning
Enables over speed limit warning when speed limit is exceeded.
ON*1/OFF
Speed Limit Warning Threshold Setting
Changes the setting speed the traffic sign recognition system over speed warning is activated.
Speed Limit*1/Speed Limit+3mph/Speed Limit +5mph/Speed Limit +10mph
(When mph is selected)
Speed Limit*1/Speed Limit +5km/h/Speed Limit +10km/h/Speed Limit +15km/h
(When km/h is selected)
Driver Attention Monitor
Changes the setting for the driver attention monitor.
OFF/Tactile Alert/Tactile And Audible Alert*1
Rev Match System
Selects On/Off the rev match system.
ON*1/OFF
  1. Default Setting

Meter Setup

Customizable Features
Description
Selectable Settings
Adjust Outside Temp. Display
Selects to adjust outside temperature reading by a few degrees.
-5°F ~ ±0°F*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
Gear Position Display
Turns the gear position display feature on and off.
ON*1/OFF
“Trip A” Reset Timing
Selects the timing to reset Trip A.
When Fully Refueled/IGN OFF/Manually Reset*1
“Trip B” Reset Timing
Selects the timing to reset Trip B.
When Fully Refueled/IGN OFF/Manually Reset*1
Adjust Alarm Volume
Changes volume level of all system warnings, door opening warning and indicator.
High/Mid*1/Low
Rev Indicator
Turns the rev indicators on and off.
ON*1/OFF
Turn By Turn Auto Display
Turns on/off the pop-up warning in the turn-by-turn navigation in the driver information interface.
ON*1/OFF
Speed/Distance Units
Selects the trip computer units.
km/h · km/mph · miles*1
(U.S.)
km/h · km*1/mph · miles (Canada)
Customizable Features
Description
Selectable Settings
Rear Seat Reminder
Turns the rear seat reminder feature on and off.
ON*1/OFF
Shift Up Alarm
Changes whether alarm sounds when the tachometer reading approaches the red zone.
ON*1/OFF
  1. Default Setting

Keyless Access Setup

Customizable Features
Description
Selectable Settings
Door Unlock Mode
Changes which doors unlock when you grab the driver's door handle.
Driver Door Only*1/All Doors
Smart Entry Light Flash
Causes some exterior lights to flash when you unlock/lock the doors.
ON*1/OFF
Smart Entry Beep
Causes the beeper to sound when you unlock/lock the doors.
ON*1/OFF
Lockout Protection
Changes the settings for the lockout protection function.
ON*1/OFF
  1. Default Setting

Lighting Setup

Customizable Features
Description
Selectable Settings
Auto High Beam
Turns on/off auto high beam function.
ON*1/OFF
Interior Light Dimming Time
Selects the length of time the interior lights stay on after doors are closed.
60sec/30sec*1/15sec
Headlight Auto OFF Timer
Selects the length of time the exterior lights stay on after you close the driver's door.
60sec/30sec/15sec*1/0sec
Auto Light Sensitivity*
Changes the timing for the headlights to come on.
Min/Low/Mid*1/High/Max
Auto Headlight On with Wiper On
Selects On/Off headlight function and wiper operation when the headlight is in AUTO setting.
ON*1/OFF
  1. Default Setting

Door/Window Setup

Customizable Features
Description
Selectable Settings
Auto Door Lock
Changes the setting for the automatic locking feature.
OFF/With Vehicle Speed*1
Auto Door Unlock
Changes the setting for when the doors unlock automatically.
OFF/All Doors When Driver's Door Opens*1/All Doors With IGN OFF
Key And Remote Unlock Mode
Sets up either the driver's door or all doors to unlock on the first push of the remote key or built-in key.
Driver Door Only*1/All Doors
Walk Away Auto Lock
Changes the settings for the auto lock function when you walk away from the vehicle.
ON/OFF*1
Keyless Lock Answer Back
Turns on/off flash of exterior lights when doors are locked/unlocked by remote key.
ON*1/OFF
Remote Window Control
Turns the remote window control on and off.
ON*1/OFF
  1. Default Setting

INDIVIDUAL Settings

Customizable Features
Description
Selectable Settings
Engine
Selects the responsiveness of the engine.
COMFORT/SPORT*1/+R
Steering
Selects the level of steering effort.
COMFORT/SPORT*1/+R
Suspension
Selects the firmness of the suspension.
COMFORT/SPORT*1/+R
Engine Sound
Selects the effect of Engine Sound.
COMFORT/SPORT*1/+R
Rev Match
Selects the Rev Match responsiveness.
COMFORT/SPORT*1
Gauge
Selects the gauges to be displayed in the Driver Information Interface.
COMFORT/SPORT*1/+R
  1. Default Setting

Maintenance Info.

Customizable Features
Description
Selectable Settings
Maintenance Info.
Resets the maintenance information.
Select Reset Items

* Not available on all models
