Driver Information Interface Right Side Area (B-type Meter)

The driver information interface shows information such as the estimated travelable distance and fuel economy of the vehicle. It also displays messages such as warnings and other helpful information.

When a warning message displays, please check the message and contact a dealer to have the vehicle inspected if necessary. Please refer to the pages below if the Engine oil pressure low or Engine temperature too hot message is displayed.

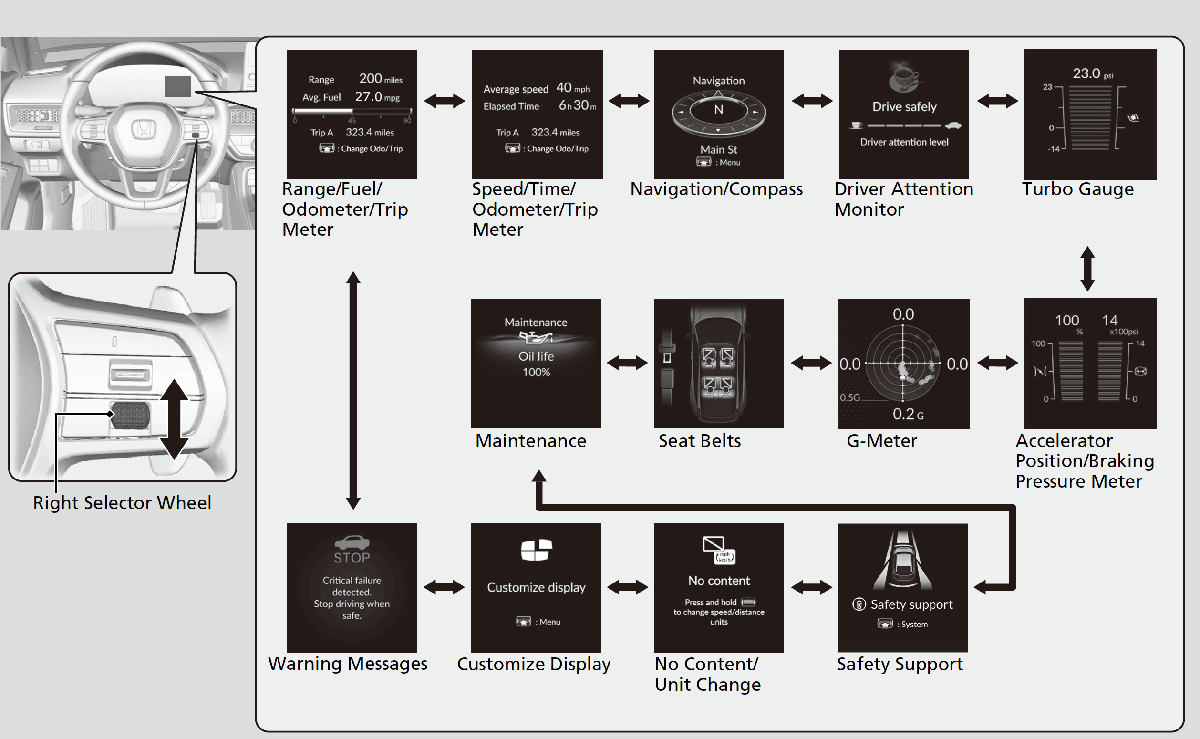

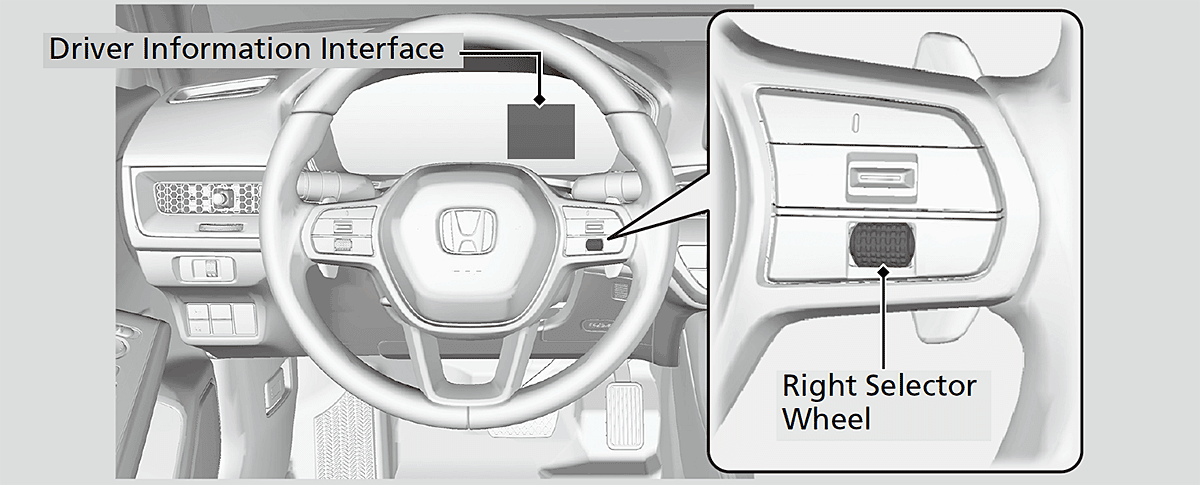

Switching the Display

Roll the right selector wheel to view different types of content.

Detail
You can add or delete the meter contents.

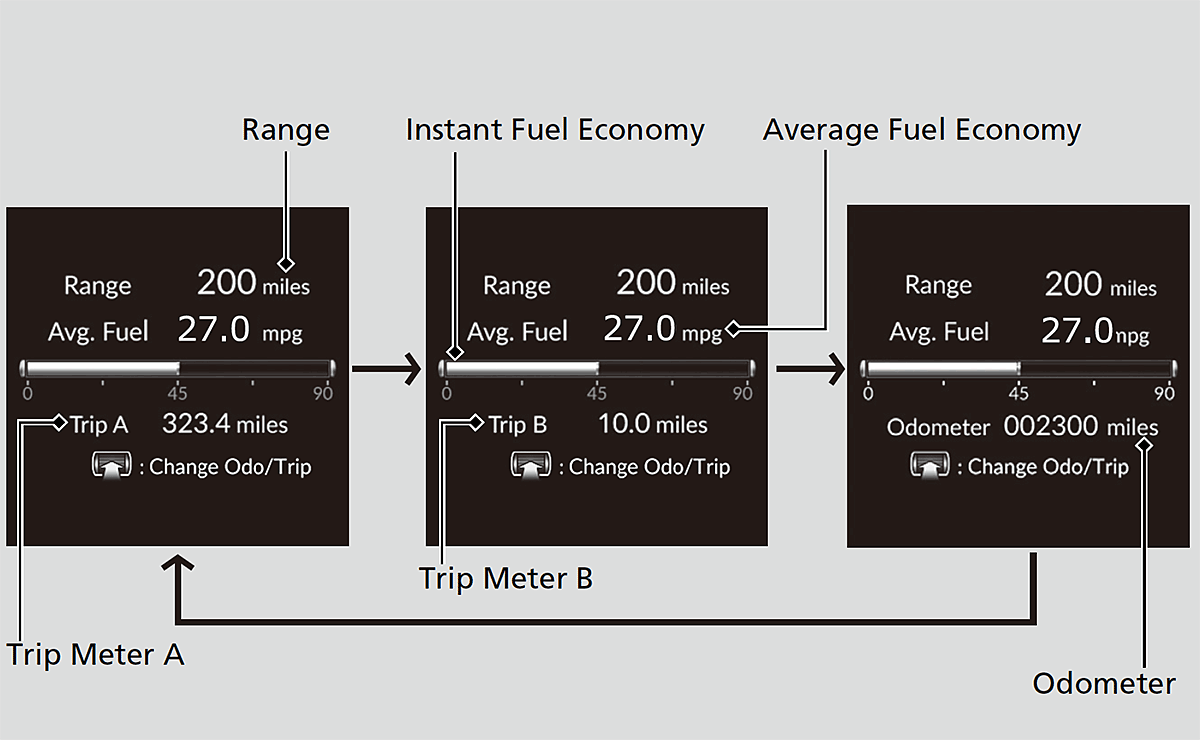

Range/Fuel/Odometer/Trip Meter

Press the right selector wheel to switch trip meter A, trip meter B, and odometer.

Odometer

Shows the total number of miles or kilometers that your vehicle has accumulated.

Trip meter

Shows the total number of miles or kilometers driven since the last reset. Meters A and B can be used to measure two separate trips.


Resetting a trip meter

To reset the trip meter, display it, press and hold the right selector wheel, and then select Reset.

  • The trip meter is reset to 0.0.

Range

Shows the estimated distance you can travel on the remaining fuel. This estimated distance is based on the vehicle's current fuel economy.

Detail
The driving range displayed is only an estimate and may differ from the actual distance the vehicle can travel.

Average fuel economy

Shows the estimated average fuel economy of each trip meter in mpg or l/100 km. The display is updated at set intervals. When a trip meter is reset, the average fuel economy is also reset.

Detail
You can change when to reset the average fuel economy.

Instant fuel economy

Shows the instant fuel economy as a bar graph in mpg or l/100 km.

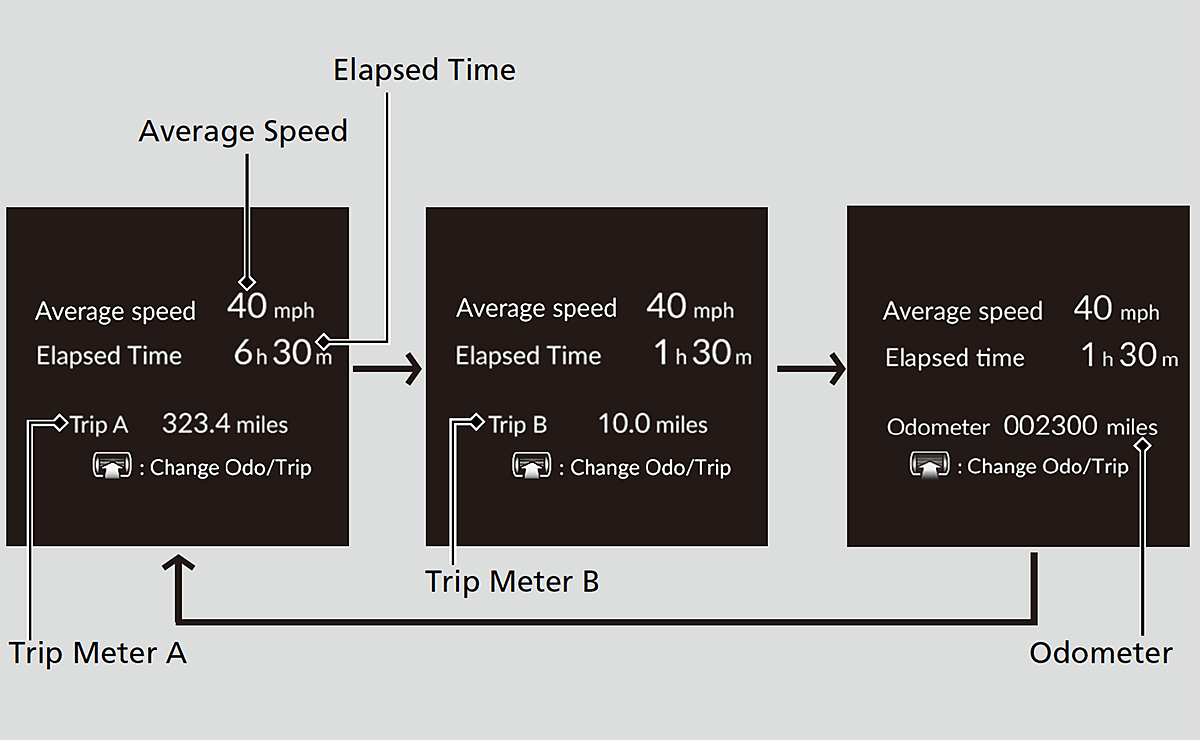

Speed/Time/Odometer/Trip Meter

Press the right selector wheel to switch trip meter A, trip meter B, and odometer.

Odometer

Trip meter

Average speed

Shows the average speed in mph or km/h since Trip A or Trip B was reset.

Detail
You can change when to reset the average speed.

Elapsed time

Shows the time elapsed since Trip A or Trip B was reset.

Detail
You can change when to reset the elapsed time.

Navigation

Detail
You can select whether to have the turn-by-turn display come on or not during the route guidance.

When the compass or turn-by-turn directions are displayed, you can control some navigation system functions on the driver information interface by pressing the right selector wheel.

Turn-by-turn directions may not be available for all apps.

Compass

Shows the compass screen.

Turn-by-Turn Directions

When driving guidance is provided by the navigation system, Apple CarPlay, or Android Auto, turn-by-turn directions to your destination appear.

Viewing the Route

Driver Attention Monitor

The Driver Attention Monitor analyzes steering inputs to determine if the vehicle is being driven in a manner consistent with drowsy or inattentive driving. If it determines that the vehicle is being driven in such a manner, it will display the degree of the driver's attention on the driver information interface.

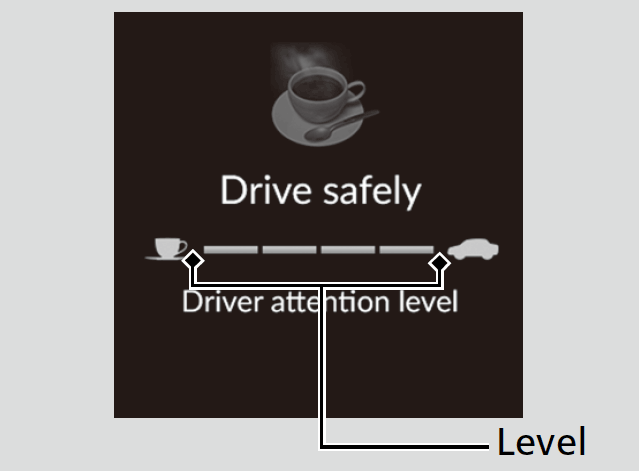

When you select Driver Attention Monitor on the driver information interface, bars on it light up in white to indicate the degree of the driver's attention.

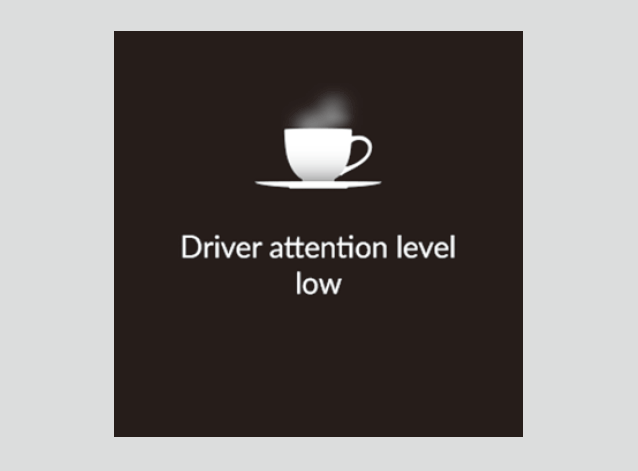

If two bars light up, the Driver attention level low message will appear.

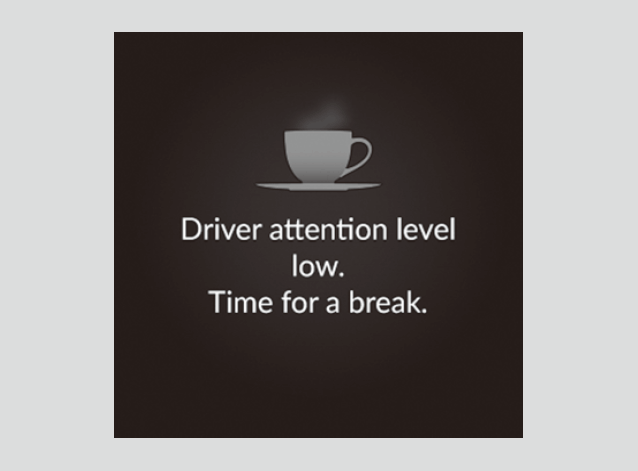

If one bar lights up, the Driver attention level low. Time for a break. message will appear, a beep will sound, and the steering wheel will vibrate.

If this message appears, stop in a safe location and rest for as long as needed.

The message will disappear when the right selector wheel is rolled or when the system has determined that the driver is driving normally.

If the driver does not take a break and the monitor continues to detect that the driver is very tired, the message will appear again after approximately 15 minutes, accompanied by a beep and steering wheel vibrations.

The message does not appear when the traveling time is 30 minutes or less.

Detail
The Driver Attention Monitor cannot always detect if the driver is tired or inattentive.
Regardless of the system's feedback, if you are feeling tired, stop in a safe location and rest for as long as needed.

The Driver Attention Monitor resets when:

  • The engine is turned off.
  • The driver unfastens the seat belt and opens the door while the vehicle is stopped.

For the Driver Attention Monitor to function:

  • The vehicle must be traveling above 25 mph (40 km/h).
  • The electric power steering (EPS) system indicator must be off.
Detail
The bars on the driver information interface remain grayed-out unless the Driver Attention Monitor is functioning.

Depending on driving conditions or other factors, the Driver Attention Monitor may not function in the following circumstances:

  • The steering assist function of the Lane Keeping Assist System (LKAS) is active.
  • The condition of the road is poor; e.g., the surface is unpaved or bumpy.
  • It is windy.
  • The driver is frequently operating the vehicle in an assertive manner, such as changing lanes or accelerating.

Customizing

You can change the Driver Attention Monitor settings. Select Tactile And Audible Alert, Tactile Alert, or OFF.

Turbo Gauge

When the turbo is producing boost, this gauge indicates boost pressure is building.

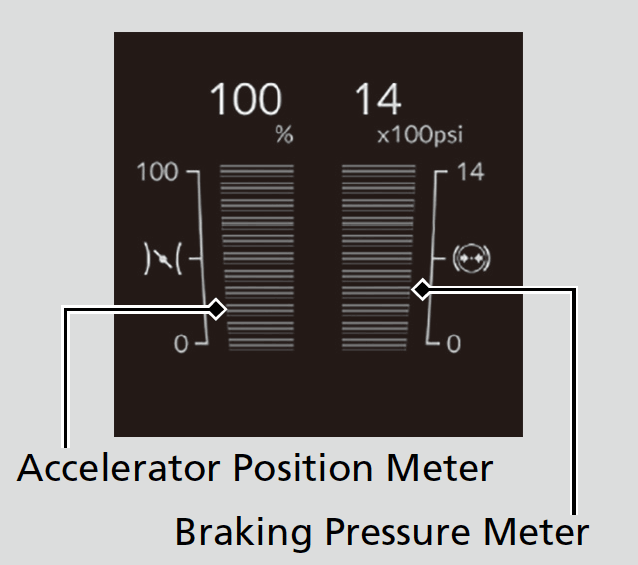

Accelerator Position/Braking Pressure Meter

Accelerator Position Meter

Displays the accelerator position in degrees of %.

Braking Pressure Meter

Displays the brake pressure in psi when the brake is applied.

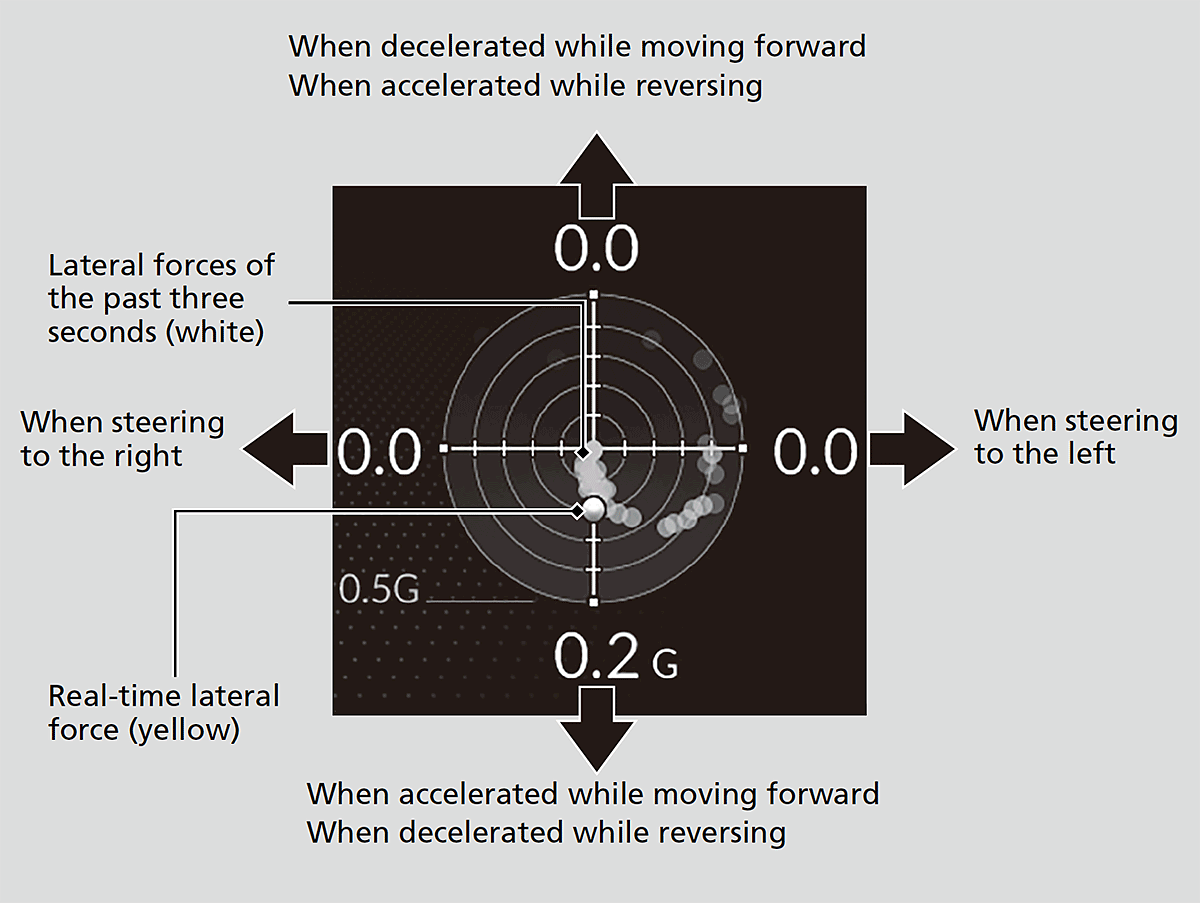

G-Meter

Displays the strength (G) and direction of the load that is applied to the vehicle during driving.

Detail

Seat Belts

Occurs, under specified conditions, when seat belts are latched or unlatched.

Maintenance

Shows the remaining oil life and Maintenance MinderTM.

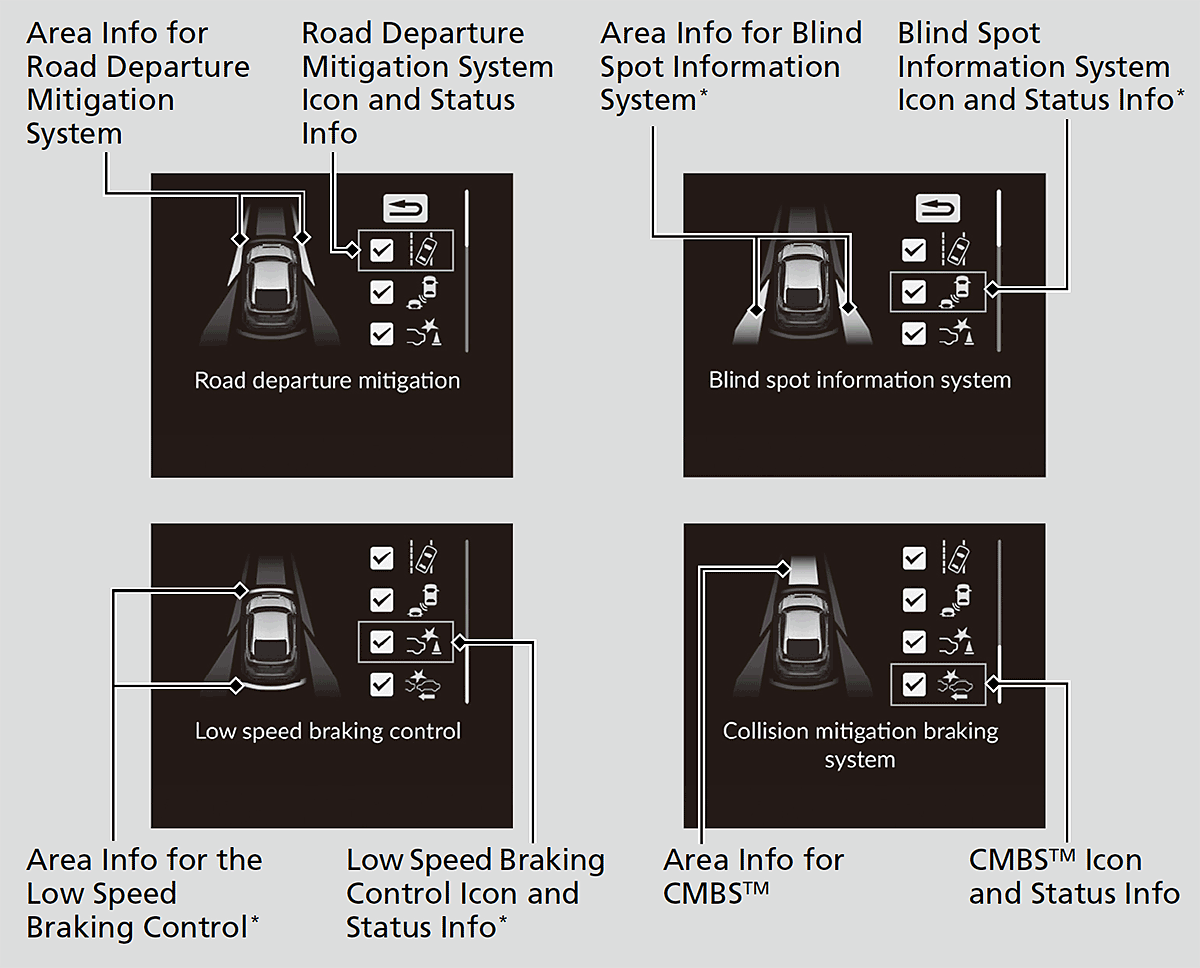

Safety Support

Indicates the status of the Road Departure Mitigation system, CMBSTM, Low Speed Braking Control* and blind spot information system*, such as On, Off, or Failure, by color and letters.

The following colors indicate the status of any of the above-mentioned systems:

  • Green: The system is on.
  • Gray: The system is off.
  • Amber: There is a problem with the system.
Detail
If a system is indicated by the color amber, have your vehicle checked by a dealer immediately.

To turn each system on or off, first press the right selector wheel to switch displays. From the next display, you can select which system to turn on or off.

You can also confirm the status of each function by the color of the safety support indicator.

Models with Low Speed Braking Control
Even when the Low Speed Braking Control icon is green, if the parking sensor is turned off for the rear only, the brake assist will not operate when reversing.

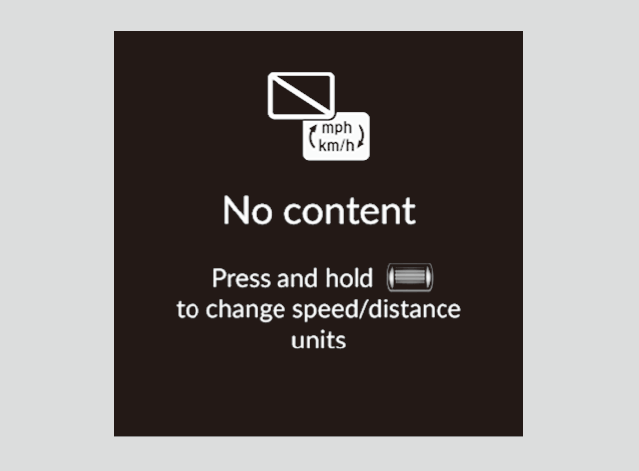

Speed/Distance Units

Enables you to show another unit on the driver information interface and set the displayed measurements to read in either miles and mph or km and km/h.

Press and hold the right selector wheel when you select the Blank/Unit change screen on the driver information interface. Each time you do this, the unit will change from miles and mph to km and km/h or vice versa. After this, a confirmation screen will appear for a few seconds.

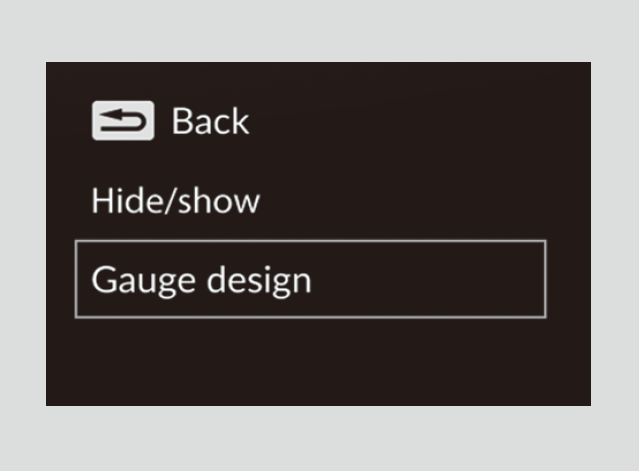

Customize Display

Arrange content on the right side area

You can choose which contents to display on the right side area.

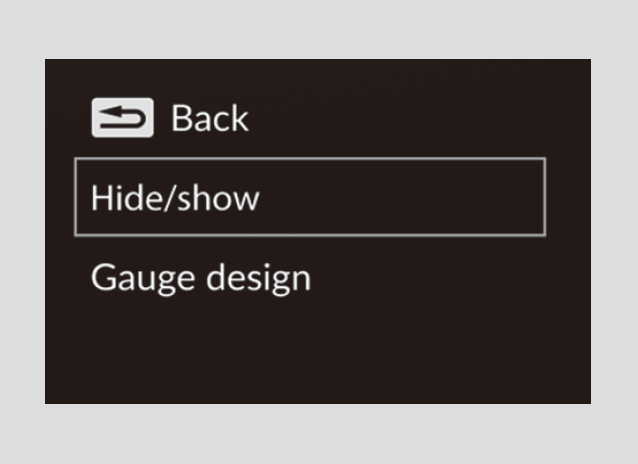

  1. Press the right selector wheel when you select the Customize display on the driver information interface.
  2. Roll the right selector wheel to scroll to select Hide/show, then press the right selector wheel.

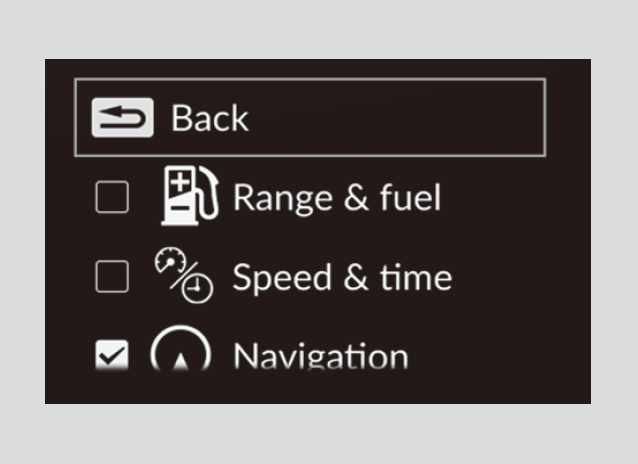

  1. Roll the right selector wheel to scroll between contents, then press the right selector wheel to check or uncheck them.
Detail
Contents that are gray cannot be removed from the right side area.

When you customize settings, set the parking brake.

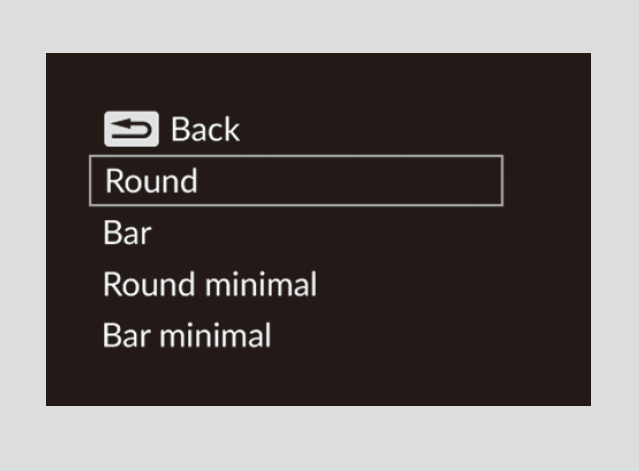

Change gauge design

You can change the gauge design to a round or bar design.

  1. Press the right selector wheel when you select the Customize display on the driver information interface.
  2. Roll the right selector wheel to scroll to select Gauge design, then press the right selector wheel.
  1. Roll the right selector wheel to scroll to select your desired settings, then press the right selector wheel.
Detail
When using the Round minimal or Bar minimal gauge design, a simplified display is used when ACC is in operation.

The +R gauge design cannot be changed.

Warnings

You can check if there are any active warning messages.

Detail
If there are multiple warnings or informations, you can roll the right selector wheel to see other warnings.

* Not available on all models
